public interface Invoker<T> extends Node {

    /**
     * get service interface.
     *
     * @return service interface.
     */
    Class<T> getInterface();

    /**
     * invoke.
     *
     * @param invocation
     * @return result
     * @throws RpcException
     */
    Result invoke(Invocation invocation) throws RpcException;

}

public interface Invocation {

    /**
     * get method name.
     *
     * @return method name.
     * @serial
     */
    String getMethodName();

    /**
     * get parameter types.
     *
     * @return parameter types.
     * @serial
     */
    Class<?>[] getParameterTypes();

    /**
     * get arguments.
     *
     * @return arguments.
     * @serial
     */
    Object[] getArguments();

    /**
     * get attachments.
     *
     * @return attachments.
     * @serial
     */
    Map<String, String> getAttachments();

    /**
     * get attachment by key.
     *
     * @return attachment value.
     * @serial
     */
    String getAttachment(String key);

    /**
     * get attachment by key with default value.
     *
     * @return attachment value.
     * @serial
     */
    String getAttachment(String key, String defaultValue);

    /**
     * get the invoker in current context.
     *
     * @return invoker.
     * @transient
     */
    Invoker<?> getInvoker();

}

public interface Result {

    /**
     * Get invoke result.
     *
     * @return result. if no result return null.
     */
    Object getValue();

    /**
     * Get exception.
     *
     * @return exception. if no exception return null.
     */
    Throwable getException();

    /**
     * Has exception.
     *
     * @return has exception.
     */
    boolean hasException();

    /**
     * Recreate.
     * <p>
     * <code>
     * if (hasException()) {
     * throw getException();
     * } else {
     * return getValue();
     * }
     * </code>
     *
     * @return result.
     * @throws if has exception throw it.
     */
    Object recreate() throws Throwable;

    /**
     * get attachments.
     *
     * @return attachments.
     */
    Map<String, String> getAttachments();

    /**
     * get attachment by key.
     *
     * @return attachment value.
     */
    String getAttachment(String key);

    /**
     * get attachment by key with default value.
     *
     * @return attachment value.
     */
    String getAttachment(String key, String defaultValue);

}

public interface Filter {

    /**
     * do invoke filter.
     * <p>
     * <code>
     * // before filter
     * Result result = invoker.invoke(invocation);
     * // after filter
     * return result;
     * </code>
     *
     * @param invoker    service
     * @param invocation invocation.
     * @return invoke result.
     * @throws RpcException
     * @see com.alibaba.dubbo.rpc.Invoker#invoke(Invocation)
     */
    Result invoke(Invoker<?> invoker, Invocation invocation) throws RpcException;

}

@SPI("javassist")

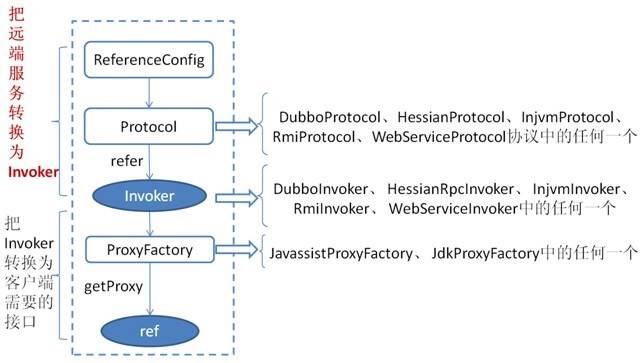

public interface ProxyFactory {

    /**
     * create proxy.
     *
     * 创建 Proxy ，在引用服务调用。
     *
     * @param invoker
     * @return proxy
     */
    @Adaptive({Constants.PROXY_KEY})
    <T> T getProxy(Invoker<T> invoker) throws RpcException;

    /**
     * create invoker.
     *
     * 创建 Invoker ，在暴露服务时调用。
     *
     * @param <T>
     * @param proxy
     * @param type
     * @param url
     * @return invoker
     */
    @Adaptive({Constants.PROXY_KEY})
    <T> Invoker<T> getInvoker(T proxy, Class<T> type, URL url) throws RpcException;

}

@SPI("dubbo")

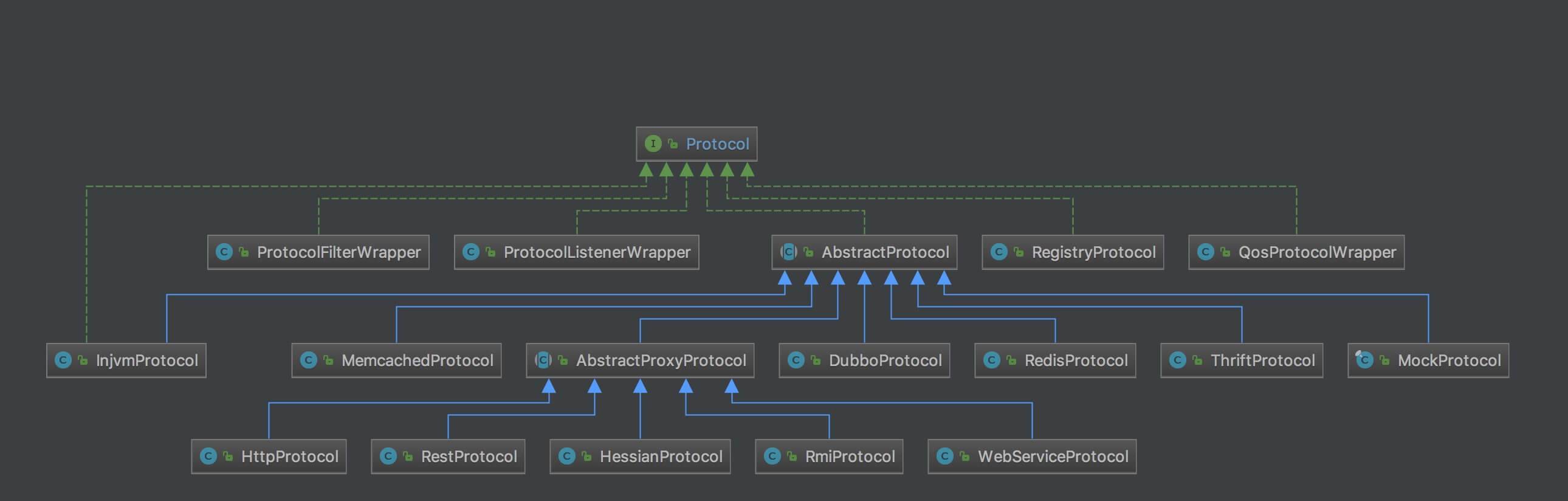

public interface Protocol {

    /**
     * Get default port when user doesn't config the port.
     *
     * @return default port
     */
    int getDefaultPort();

    /**
     * Export service for remote invocation: <br>
     * 1. Protocol should record request source address after receive a request:
     * RpcContext.getContext().setRemoteAddress();<br>
     * 2. export() must be idempotent, that is, there's no difference between invoking once and invoking twice when
     * export the same URL<br>
     * 3. Invoker instance is passed in by the framework, protocol needs not to care <br>
     *
     * @param <T>     Service type
     * @param invoker Service invoker
     * @return exporter reference for exported service, useful for unexport the service later
     * @throws RpcException thrown when error occurs during export the service, for example: port is occupied
     */
    /**
     * 暴露远程服务：<br>
     * 1. 协议在接收请求时，应记录请求来源方地址信息：RpcContext.getContext().setRemoteAddress();<br>
     * 2. export() 必须是幂等的，也就是暴露同一个 URL 的 Invoker 两次，和暴露一次没有区别。<br>
     * 3. export() 传入的 Invoker 由框架实现并传入，协议不需要关心。<br>
     *
     * @param <T>     服务的类型
     * @param invoker 服务的执行体
     * @return exporter 暴露服务的引用，用于取消暴露
     * @throws RpcException 当暴露服务出错时抛出，比如端口已占用
     */
    @Adaptive
    <T> Exporter<T> export(Invoker<T> invoker) throws RpcException;

    /**
     * Refer a remote service: <br>
     * 1. When user calls `invoke()` method of `Invoker` object which's returned from `refer()` call, the protocol
     * needs to correspondingly execute `invoke()` method of `Invoker` object <br>
     * 2. It's protocol's responsibility to implement `Invoker` which's returned from `refer()`. Generally speaking,
     * protocol sends remote request in the `Invoker` implementation. <br>
     * 3. When there's check=false set in URL, the implementation must not throw exception but try to recover when
     * connection fails.
     *
     * @param <T>  Service type
     * @param type Service class
     * @param url  URL address for the remote service
     * @return invoker service's local proxy
     * @throws RpcException when there's any error while connecting to the service provider
     */
    /**
     * 引用远程服务：<br>
     * 1. 当用户调用 refer() 所返回的 Invoker 对象的 invoke() 方法时，协议需相应执行同 URL 远端 export() 传入的 Invoker 对象的 invoke() 方法。<br>
     * 2. refer() 返回的 Invoker 由协议实现，协议通常需要在此 Invoker 中发送远程请求。<br>
     * 3. 当 url 中有设置 check=false 时，连接失败不能抛出异常，并内部自动恢复。<br>
     *
     * @param <T>  服务的类型
     * @param type 服务的类型
     * @param url  远程服务的URL地址
     * @return invoker 服务的本地代理
     * @throws RpcException 当连接服务提供方失败时抛出
     */
    @Adaptive
    <T> Invoker<T> refer(Class<T> type, URL url) throws RpcException;

    /**
     * Destroy protocol: <br>
     * 1. Cancel all services this protocol exports and refers <br>
     * 2. Release all occupied resources, for example: connection, port, etc. <br>
     * 3. Protocol can continue to export and refer new service even after it's destroyed.
     */
    /**
     * 释放协议：<br>
     * 1. 取消该协议所有已经暴露和引用的服务。<br>
     * 2. 释放协议所占用的所有资源，比如连接和端口。<br>
     * 3. 协议在释放后，依然能暴露和引用新的服务。<br>
     */
    void destroy();

}

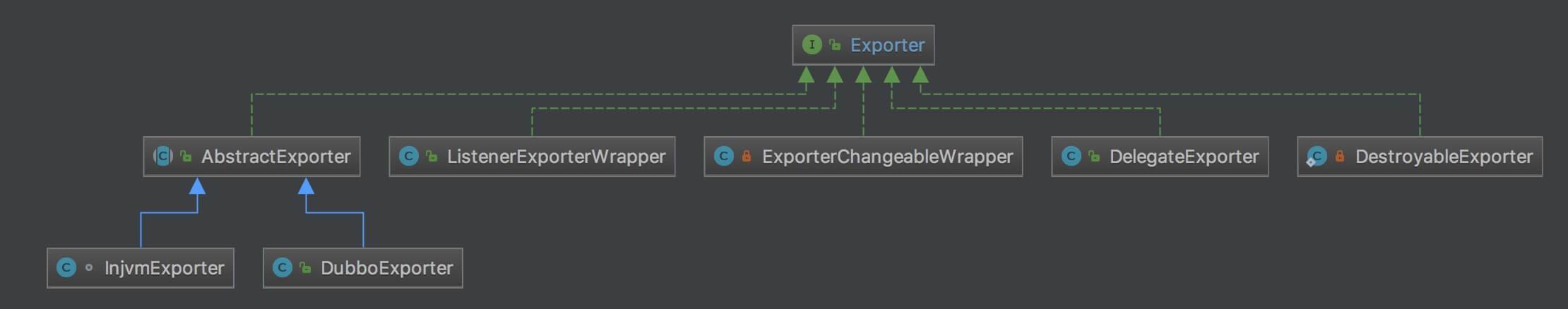

public interface Exporter<T> {

    /**
     * get invoker.
     *
     * @return invoker
     */
    Invoker<T> getInvoker();

    /**
     * unexport.
     * <p>
     * <code>
     * getInvoker().destroy();
     * </code>
     */
    void unexport();

}

@SPI
public interface InvokerListener {

    /**
     * The invoker referred
     *
     * 当服务引用完成
     *
     * @param invoker
     * @throws RpcException
     * @see com.alibaba.dubbo.rpc.Protocol#refer(Class, URL)
     */
    void referred(Invoker<?> invoker) throws RpcException;

    /**
     * The invoker destroyed.
     *
     * 当服务销毁引用完成
     *
     * @param invoker
     * @see com.alibaba.dubbo.rpc.Invoker#destroy()
     */
    void destroyed(Invoker<?> invoker);

}

@SPI
public interface ExporterListener {

    /**
     * The exporter exported.
     *
     * 当服务暴露完成
     *
     * @param exporter
     * @throws RpcException
     * @see com.alibaba.dubbo.rpc.Protocol#export(Invoker)
     */
    void exported(Exporter<?> exporter) throws RpcException;

    /**
     * The exporter unexported.
     *
     * 当服务取消暴露完成
     *
     * @param exporter
     * @throws RpcException
     * @see com.alibaba.dubbo.rpc.Exporter#unexport()
     */
    void unexported(Exporter<?> exporter);

}
